Masterfill 6 Head Filler S500 from 25 ml to 2000 ml

Masterfill Filling Machine S 500

The Masterfill S 500 is a high-performance, precision filling machine designed to meet the demanding requirements of modern dairy and food production facilities. Built for reliability, efficiency, and hygiene, the S 500 delivers consistent filling accuracy across a wide range of liquid and semi-liquid products.

Engineered with advanced control systems, the S 500 ensures smooth operation and minimal product waste, making it ideal for filling milk, yogurt, cream, sauces, and other viscous products. Its robust stainless-steel construction guarantees durability while complying with strict food safety and hygiene standards.

The machine features user-friendly controls, allowing operators to easily adjust filling volumes and production speeds to suit different product types and packaging formats. With its compact footprint and efficient design, the Masterfill S 500 integrates seamlessly into existing production lines.

Key Features

• High-precision volumetric filling system
• Suitable for liquid and semi-viscous products
• Hygienic stainless-steel construction
• Easy-to-use control interface
• Adjustable filling speed and volume
• Low maintenance and easy cleaning
• Compact and space-efficient design

Applications

• Milk and dairy products
• Yogurt and desserts
• Cream and sauces
• Beverage and liquid food products

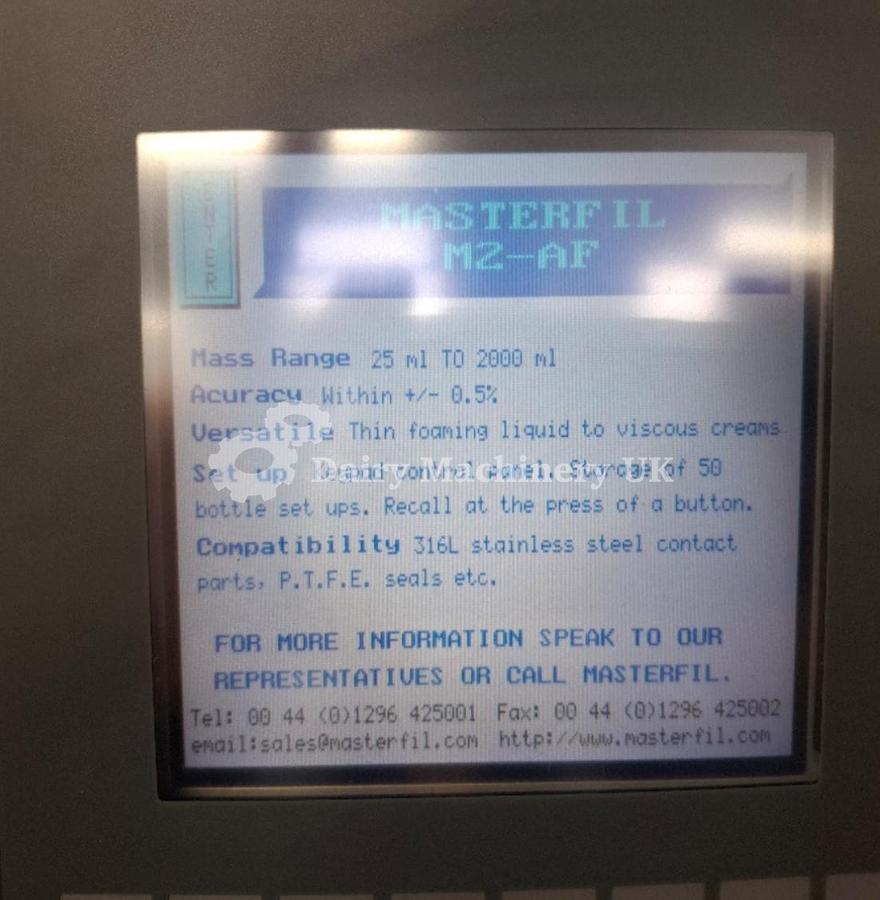

Materfill S500 6 head fill while rise filler M2-AF Serial number 4716

YOM 2006

Filling capacity 2ml to 2000 ml

The filler is a 6 head automatic filler, with the capacity to store 50 separate preset menus,

Brief FDS

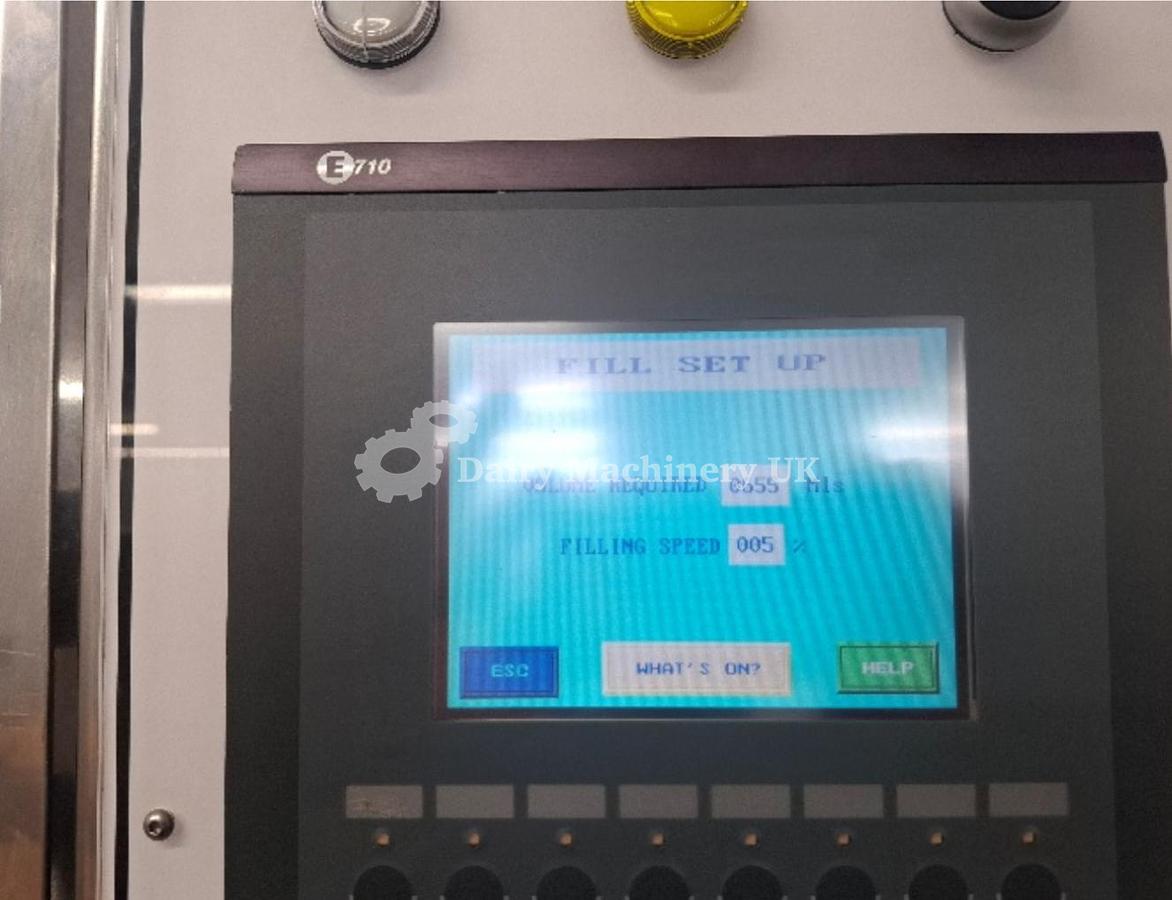

• Controlled by Siemens S7 PLC via Mitsubishi Beijer HMI

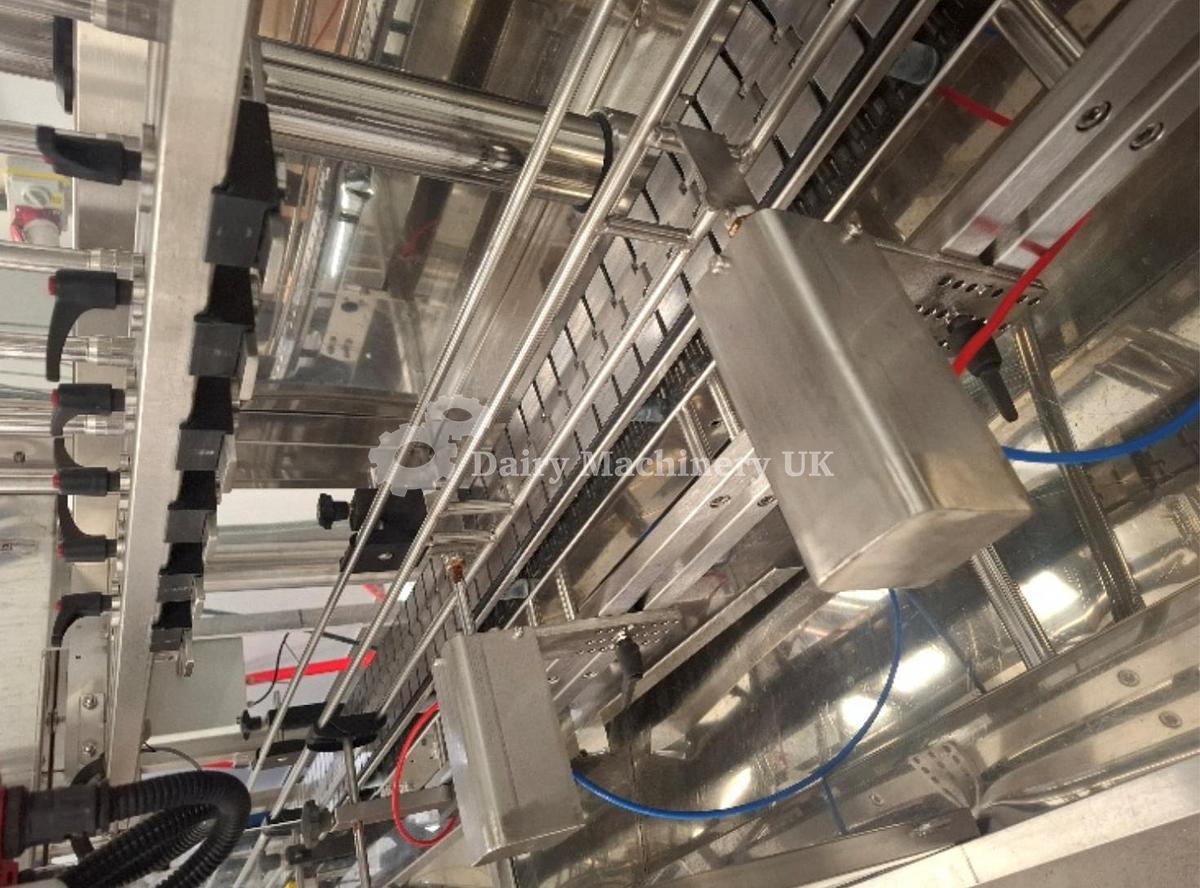

• Jars feed in vis constant stainless steel slat band

• Jars indexed via program-controlled infeed and outfeed

pneumatic gates.

• Jars filled via positive pressure within 50 ltr holding tank

(this could be changed easily to a constant positive

pressure into manifold via modulating pump)

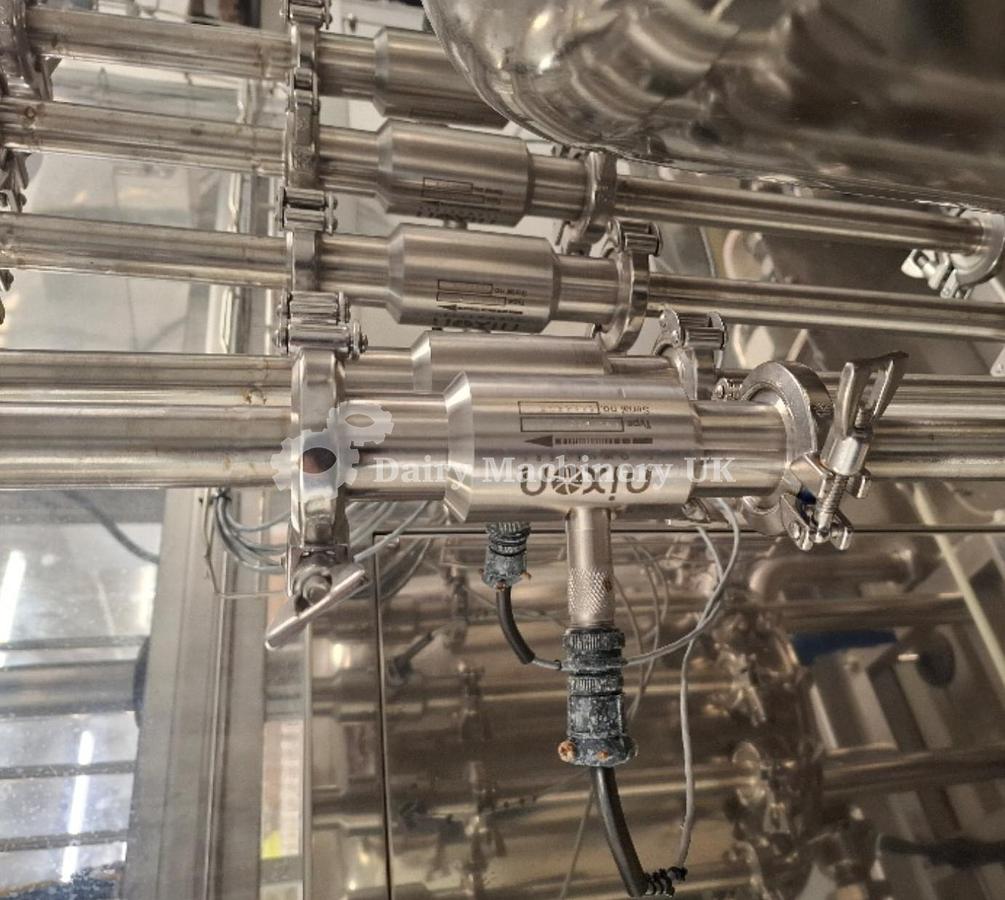

• Volume controlled via Nixon BNO turbine flow meters

communications with siemens high speed counter.

• Liquid feeds into jar with rise during fill or above jar for

fill time

• Full SIP, CIP, and flush capability programs available

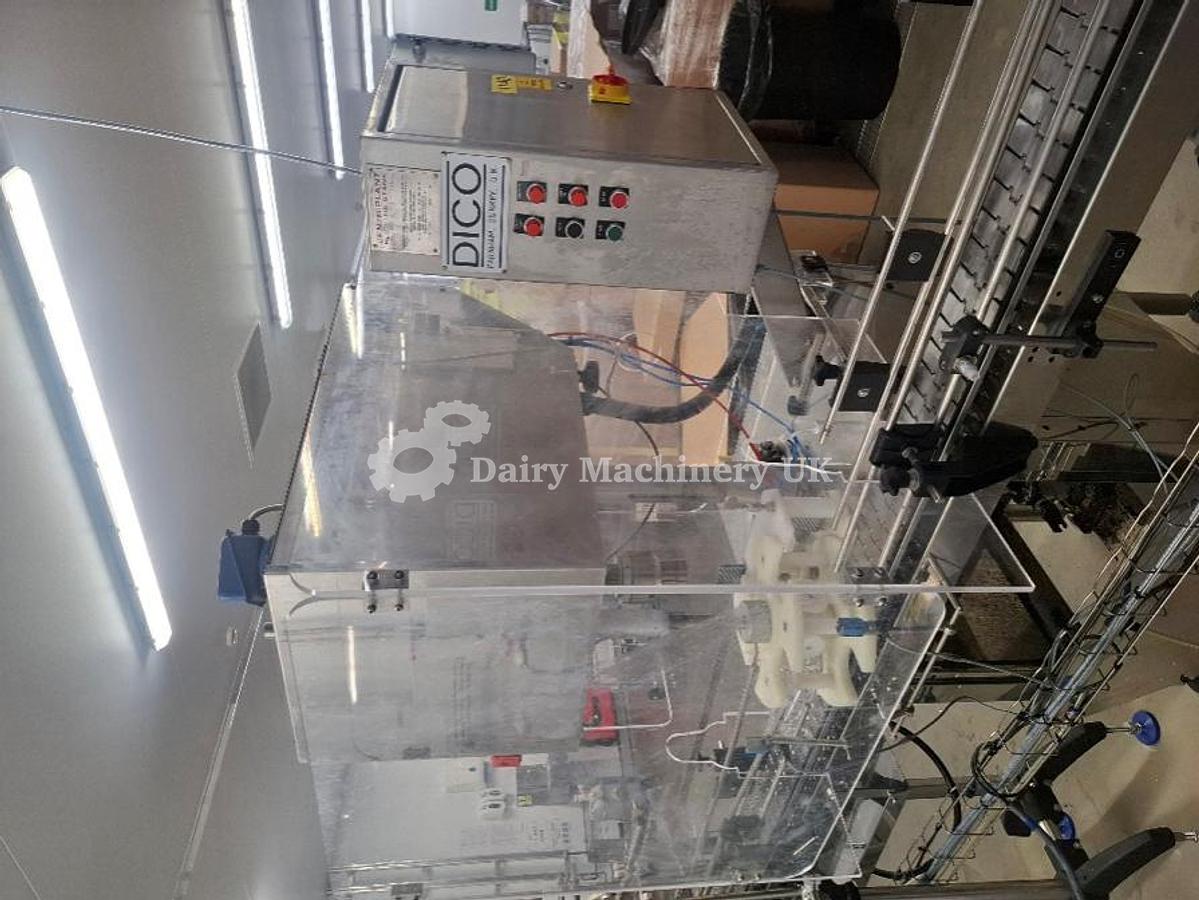

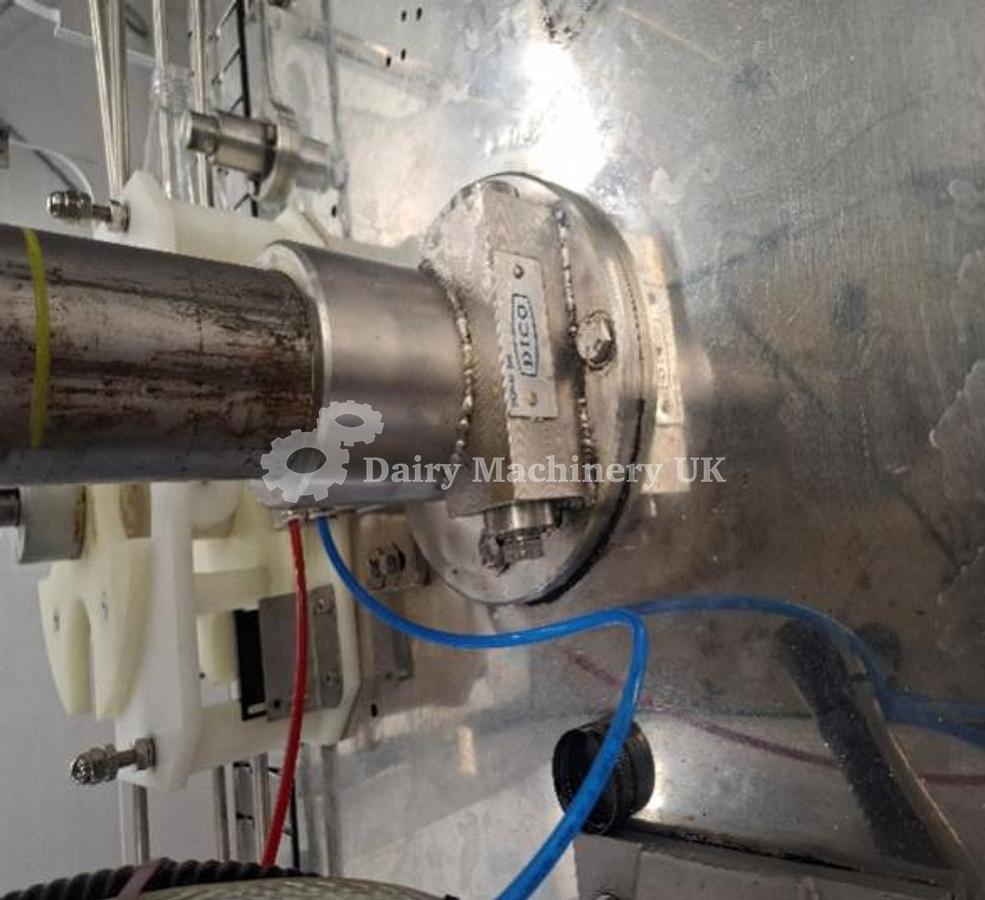

Dico CapperSerial number 3/379Brief FDS

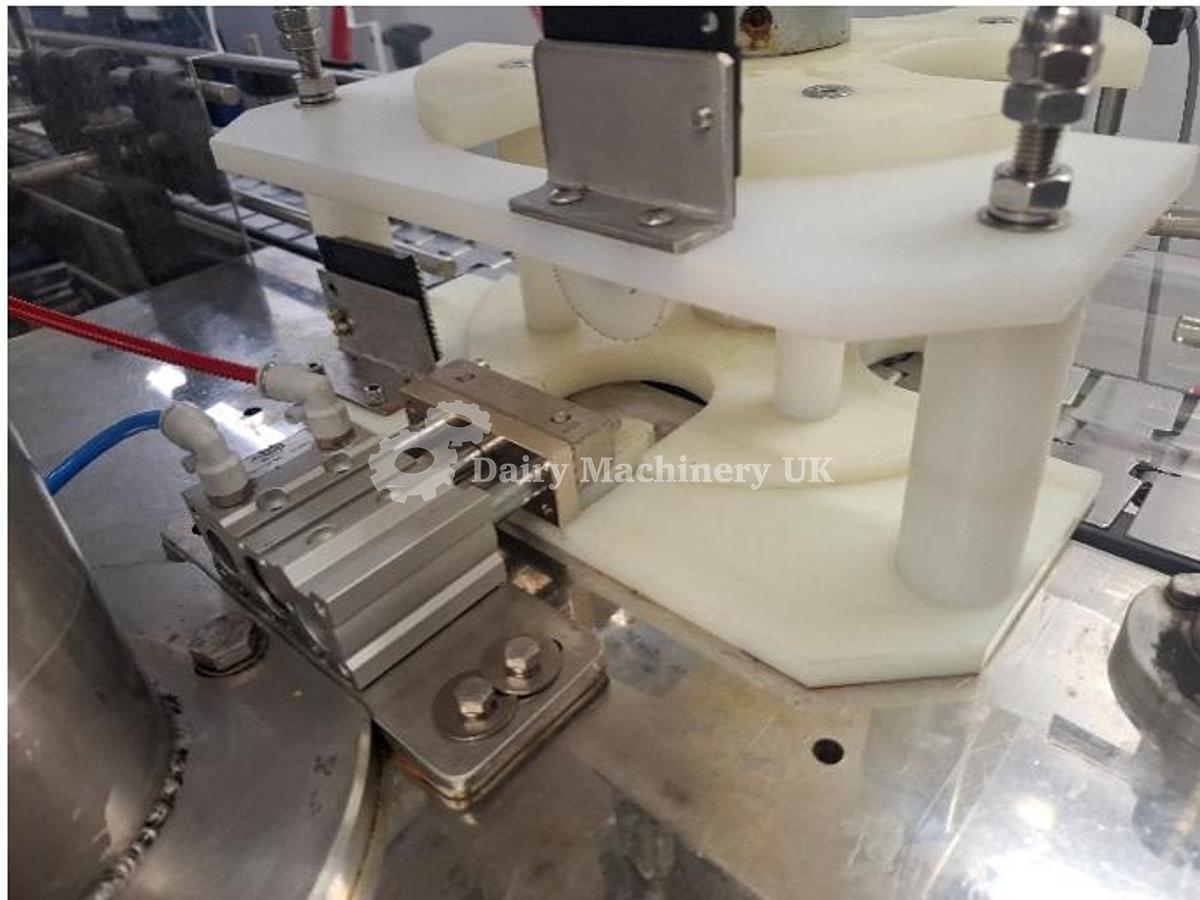

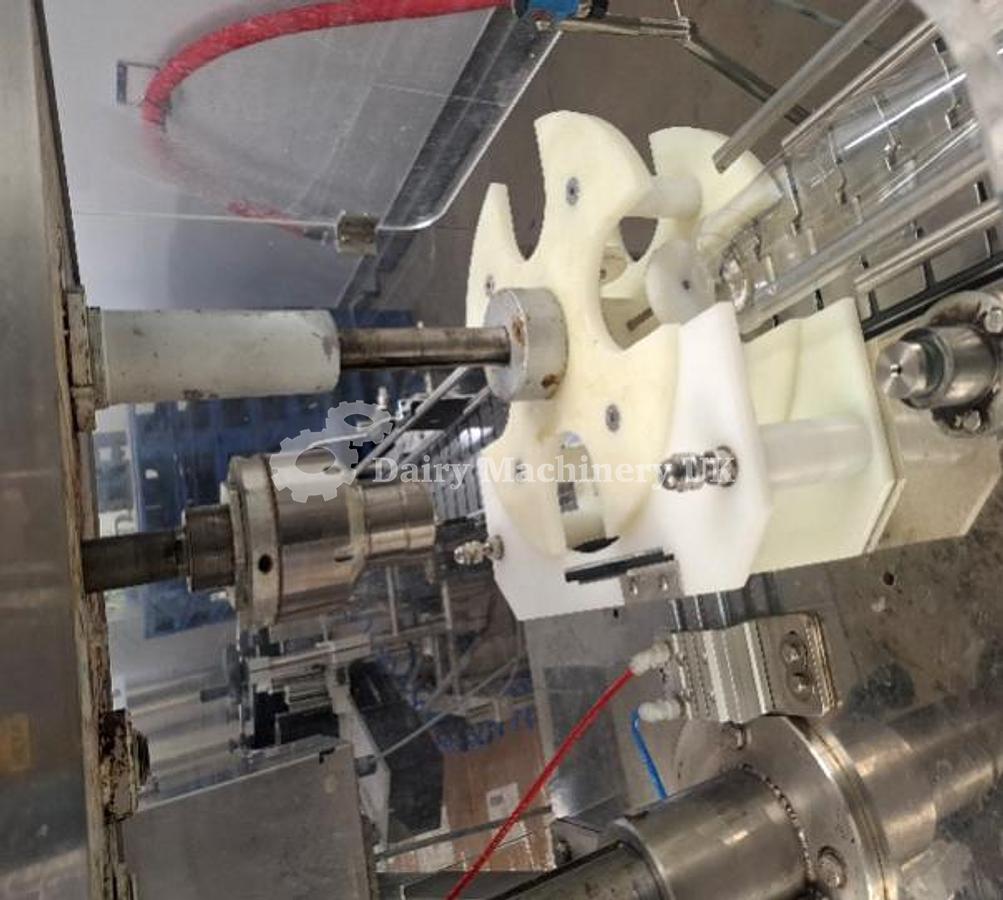

 Capper with rotating starwheel

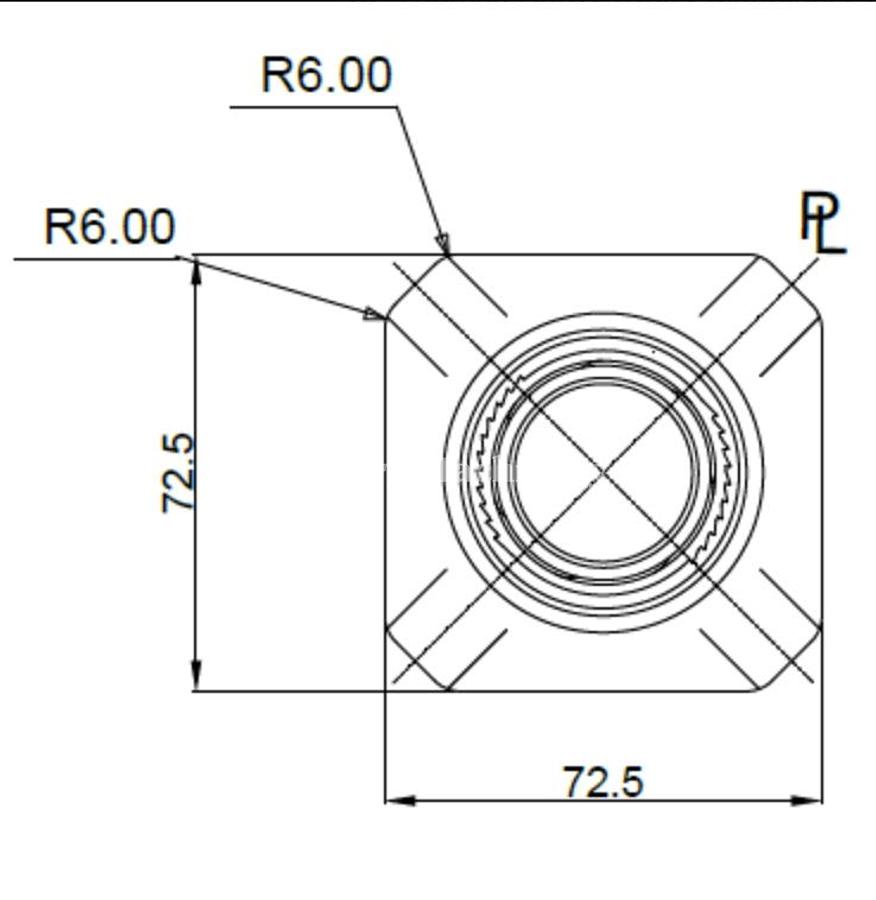

 Will cap Square of round Jar/ Bottles (change parts included)

 Jar enters, signals PEC starwheel turns 90⁰ under capping head

 Capping lowers on cam, retracts on cam

 Jar/ bottle clamp activated of adjustable cam onto 5/2 valve

 Starwheel turns 90⁰ onto exit conveyor

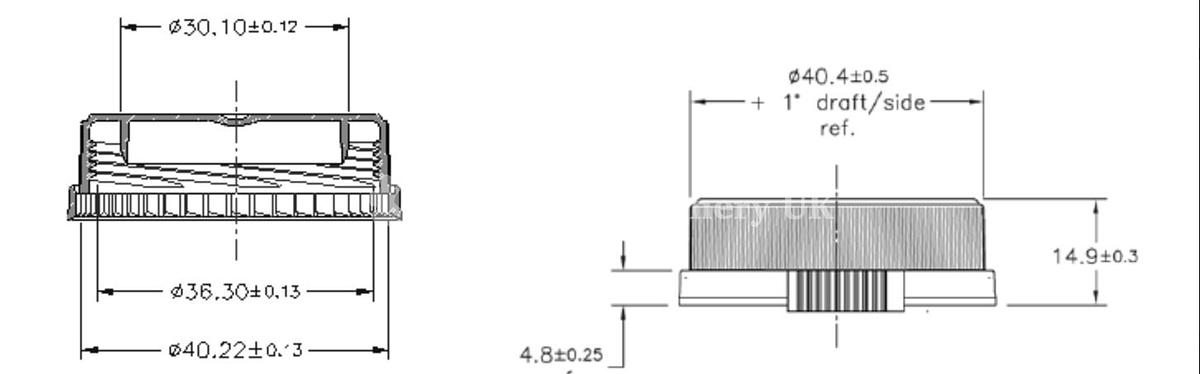

 Current capping head removable, for 40mm cap (no alternative head)

 All systems work on cams and relays, no PLC

 Motor runs on DOL for capping (clutch adjusted and variable speed gearbox)

 Cam motor uses inverter. Guards with interlocked access doorway

Required services.

 3 Phase 32-amp electrical supply

 7 Bar air pressure

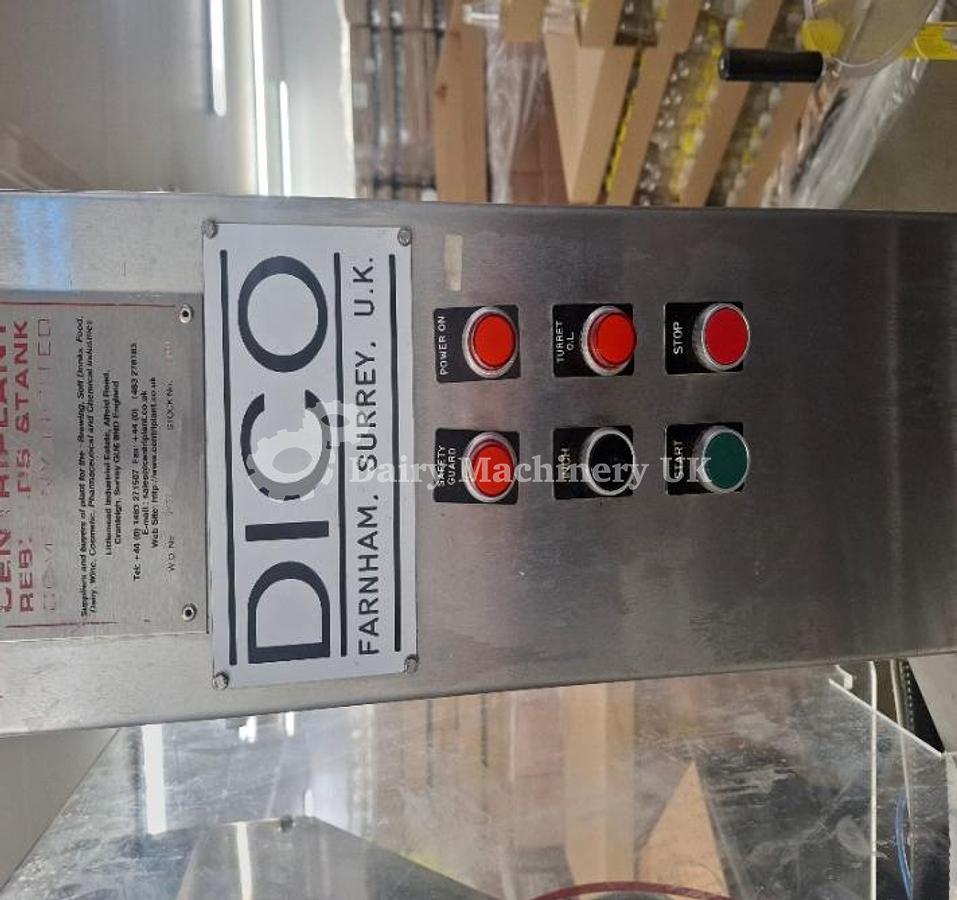

Main control panel

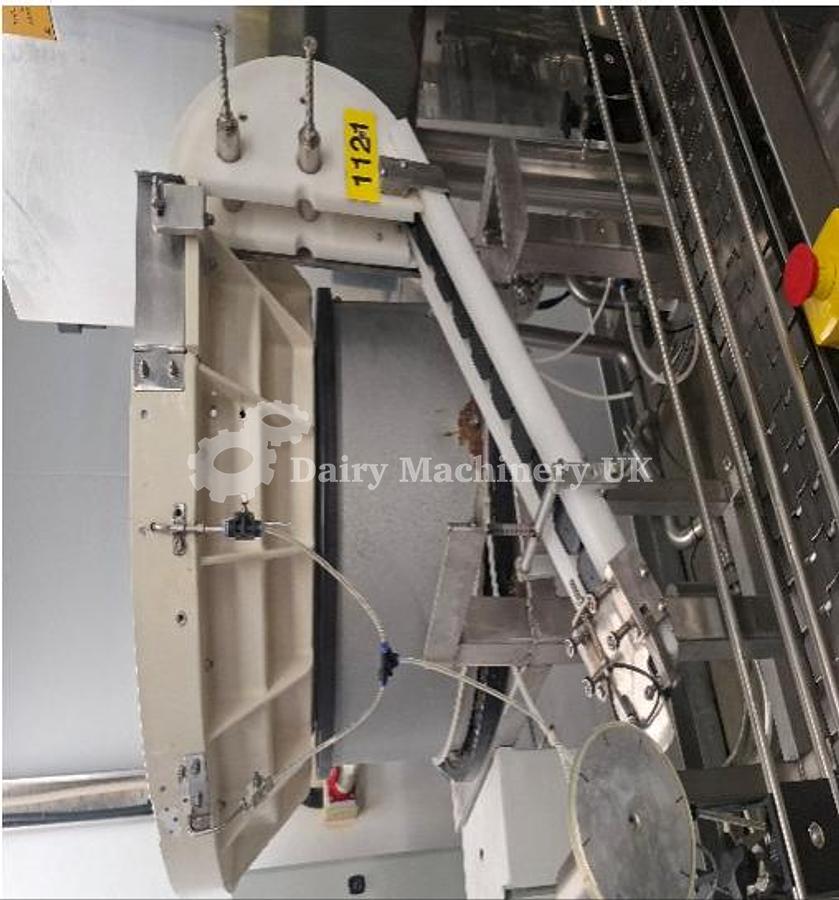

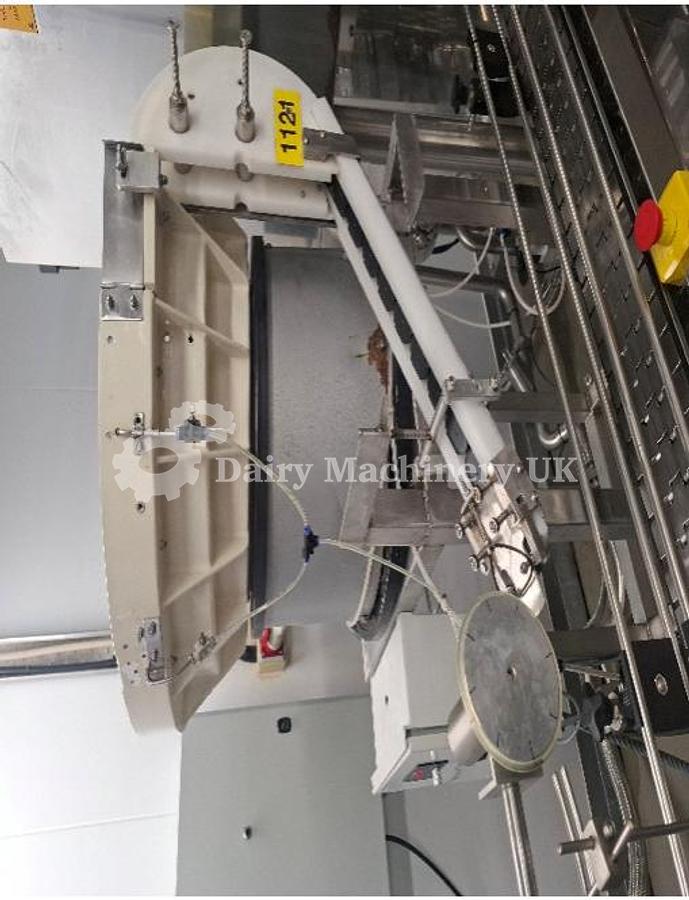

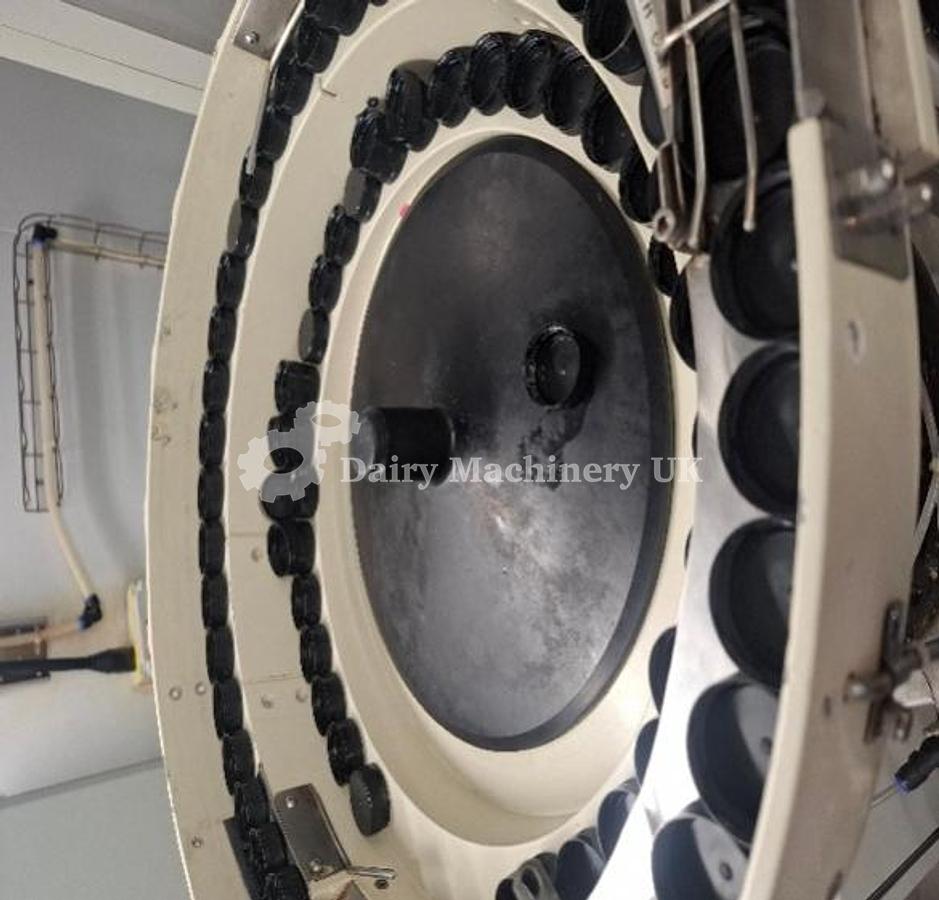

Cap sorter and feederRNASRC-N 400-2LSerial no 00801Brief FDS

 40mm cap sorter and feeder

 Vibrating bowl agitates caps upwards

 Air jets and cut outs sort caps placing in correct orientation

 Cap chute allows smooth passage to dispensing head with some adjustment

 Cap dispenser works on bottle/jar passing under and catching cap, this allows the retaining jaws to open and release cap

 Side or over independent speed controlled wheel assists in cap leveling

Required services.

 240V electrical supply

 3 Bar air pressure
