Milky Lab Mozzarella Line 375 kg/H

Milky Lab Mozzarella Line 375 kg/H

orCall +44 (0) 133 232 2578

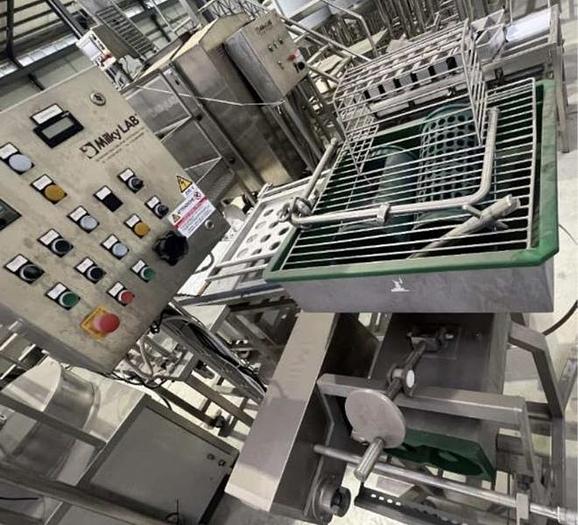

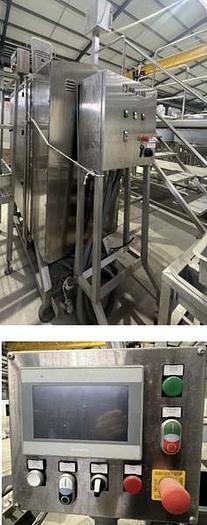

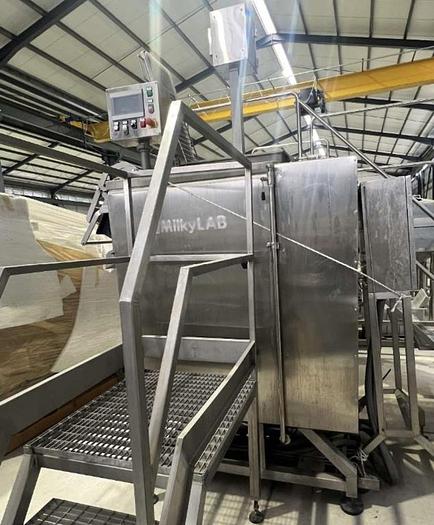

Milkylab Mozzarella Coocker, Stretching and Moulding Line : 375 kg per hour Milky Lab Mozzarella Line 375 kg/H COOKER STRETCHER TECHNICAL DATA:Dimensions:cm 170x80x240 COOKER AND STRETCHER - TECHNICAL DATA  The product stretching - melting happens by direct steam injection, or with steam injected into the jacket.  N. 2 bi-directional augers activated by N. 2 independent motor reducers (mod. Sew- eurodrive – low consumption) with adjustable speed by Inverter.  Parts that come into contact with the product are shot-peened with quarz microspheres and the augers feature Teflon coating.  Thermoregulator with digital display for temperature control  Autonomous CIP washing system, incorporated in the machine.  Electrical control panel in AISI 304 stainless steel equipped by a “touch screen” panel and PLC Siemens  Easy use of the machine thanks to recipes set in the PLC.  Filter to sterilize steam complete with filtering cartridge.  Product unloading by pneumatic exit door. MOULDING MACHINE Dimensions cm 110x120x190 h Weight 150 kg 200 – 1.000 kg/hour Depends on the shape / the weight of the product Material : AISI 304 stainless steel ACCESSORIES  Moulding roller for mozzarella balls from 1 gr up to 650 gr  Moulding roller for pizza cheese  Moulding roller for special shapes  Moulding roller for string cheese  Conveyor for continuous cords, twisted cheese and flat dough  Pneumatic conveyor for blocks up to 3,5 kg  Dosing system for burrata TECHNICAL FEATURES  Entirely built in AISI 304 stainless steel  An electrically-heated jacket allows the product to be kept constantly at the ideal moulding temperature  A variable-axis machine body in order to regulate the softness of the product  N. 2 augers completely remouvable, diam. 150 mm, built in AISI 304 stainless steel  Moulding roller diameter 215 mm, 350 mm long, built in polyetilene high density, certified for food contact  The moulding rollers and augers are speed adjustable by inverter  The parts in contact with the product are entirely teflon-coated in order to be non-stick  Electronical control panel manufactured in AISI 304 stainless steel IP 65 protection  Thermoregulator with a digital display to control the temperature  Electronic rev counter with a digital display, to calculate the turns of the moulding roller / the number of the products  Safety sensors and protection according to the CEE rules Moulding roller of gr. 125 Moulding roller of gr. 200


Electrical power7.5 Kw
Hourly production375 kg/h 125 kg/batch
Weight650 kg
MaterialAISI 316 Stainless Steel
Steam consumption100 kg/h
Technical features Entirely built in AISI 316 stainless steel, double wall vat for the steam injection into the jacket
Technical dataHourly Output
Electrical1,5 kW
Moulds availableMoulding roller of gr. 10
